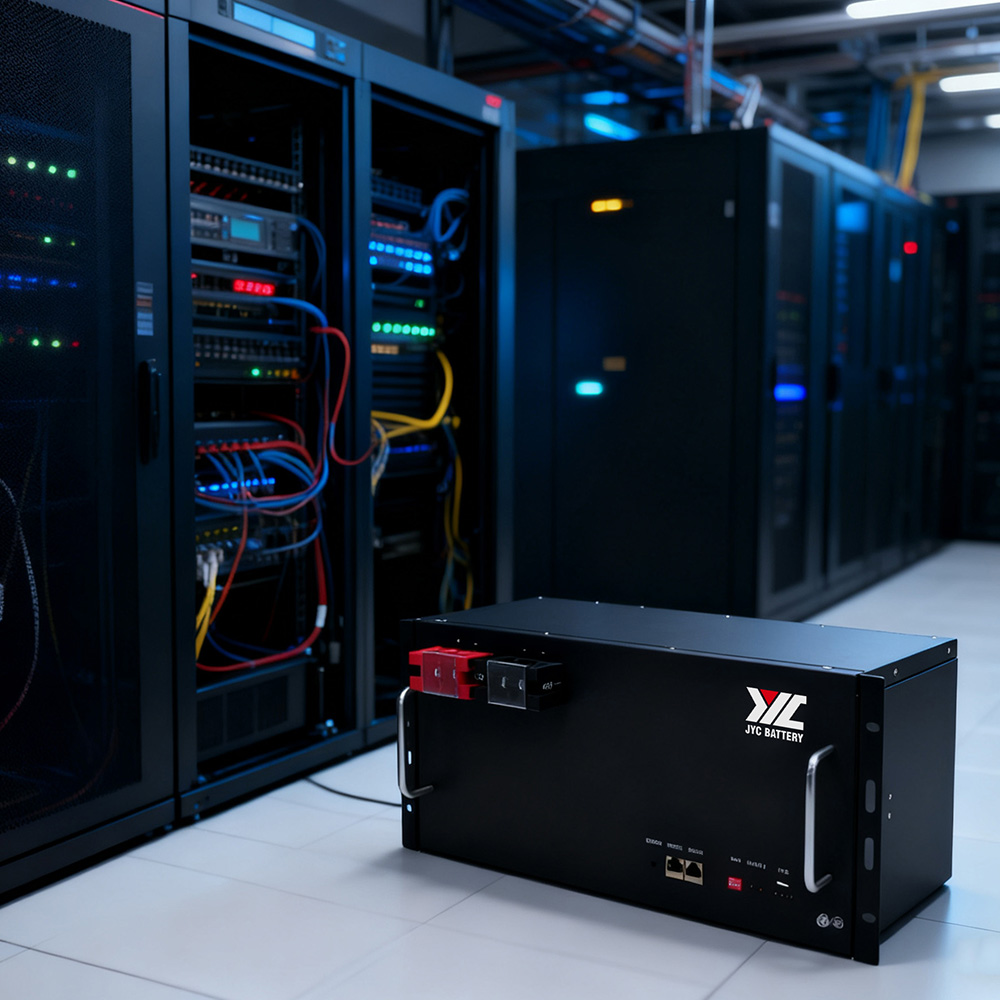

48V Communication Lithium Battery

The 48V Communication Lithium Battery is a high-voltage energy storage power supply specially designed for communication scenarios. With lithium battery technology as its core, it focuses on meeting the continuous power supply needs of communication equipment. It features high stability, long endurance, and safety & reliability, serving as a key power supply component for communication infrastructure.

Send Inquiry


 MODELLFP48V100AHLFP48V150AHLFP48V200AH48LFP300
Nominal Voltage48V48V48V48V
Rated Capacity100Ah@0.5C150Ah@0.5C200Ah@0.5C300Ah@0.5C
Max.Charge Current100A150A200A300A
End Charging Voltage54.75V54.75V54.75V54.75V
Rated Discharging Current50A(0.5C)75A(0.5C)100A(0.5C)150A(0.5C)
Max.Discharge Current100A(1C)150A(1C)200A300A
End Discharging Voltage40.5V40.5V40.5V40.5V
Operating Environment Temperature-20~60℃-20~60℃-20~60℃-20~60℃
Storage Temperature-20~45℃(in 1 month)-20~45℃(in 1 month)-20~45℃(in 1 month)-20~45℃(in 1 month)
15~35℃(in 6 months)15~35℃(in 6 months)15~35℃(in 6 months)15~35℃(in 6 months)
Design Life≥10 years≥10 years≥10 years≥10 years
CommunicationRS232,RS485,CANRS232,RS485,CANRS232,RS485,CANRS232,RS485,CAN
Cycle Life6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD
Dimensions(W*D*H)442mm*450mm*155mm442mm*480mm*222mm442mm*630mm*222mm442mm*520mm*339mm
Weight41 kg60 kg81 kg110 kg
  • Voltage and Capacity Specifications

  • Battery Type and Technology

  • Structure and Protection Design

  • Charging and Discharging Performance

  • Outstanding Endurance and Reliability

  • Maintenance-Free and Low Loss

  • Strong Environmental Friendliness and Adaptability

  • Intelligent Management and Remote Monitoring
