JYC BATTERY MANUFACTURER CO.,LTD.

DC Series

DC series VRLA batteries are superior deep cycle design with thick plates, high-density active materials And Slightly stronger electrolyte,Which can withstand repeated deep cyclic applications.
Deep cycle series Batteries are the special design batteries with 6 years floating design life at 25℃.
Meet with IEC,BS,JIS and Eurobat standard,UL(MH62092),CE approved

Send Inquiry


ModelNominal VoltageRated CapacityLengthWidthHeightTHTerminalType
(V)(Ah,20HR)mminmminmminmmin
DC7.2-1212V7.2 1515.94 652.56 943.70 1003.94 F1/F2
DC9-1212V9.0 1515.94 652.56 943.70 1003.94 F1/F2
DC9-12B12V9.0 1515.94 652.56 943.70 1003.94 F1/F2
DC12-1212V121525.98 993.90 953.74 1003.94 F1/F2
DC20-1212V20.0 1827.17 773.03 1676.57 1676.57 T1












ModelNominal VoltageRated CapacityLengthWidthHeightTHTerminalType
(V)(Ah,10HR)mminmminmminmmin
DC28-1212V261756.89 1666.54 1264.96 1264.96 T1
DC33-1212V331967.72 1305.12 1556.10 1706.69 T2
DC38-1212V381987.80 1676.57 1736.81 1736.81 T2

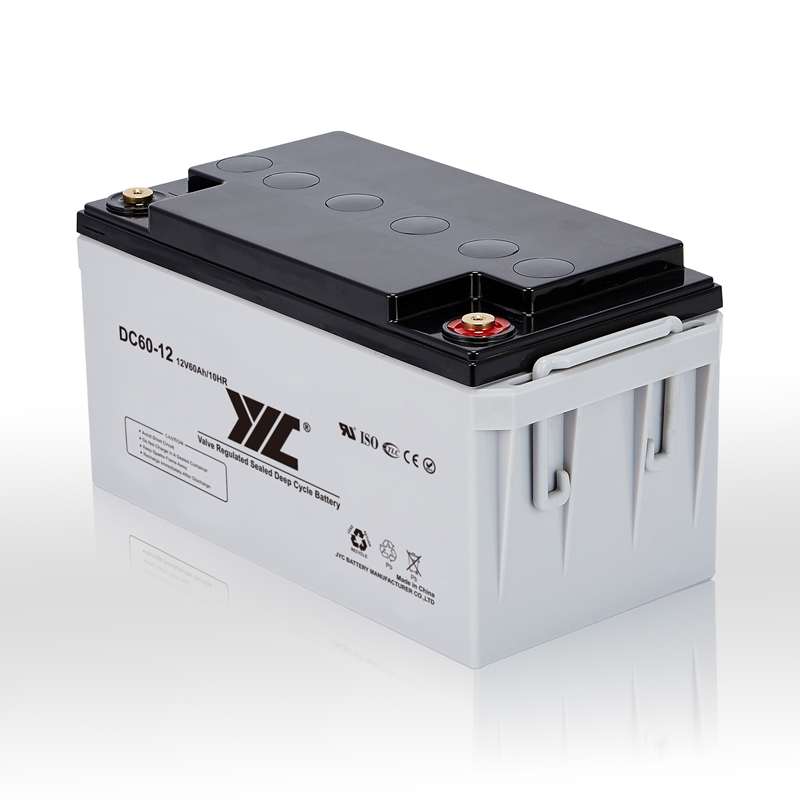

DC60-1212V6034813.70 1686.61 1776.97 1776.97 T3

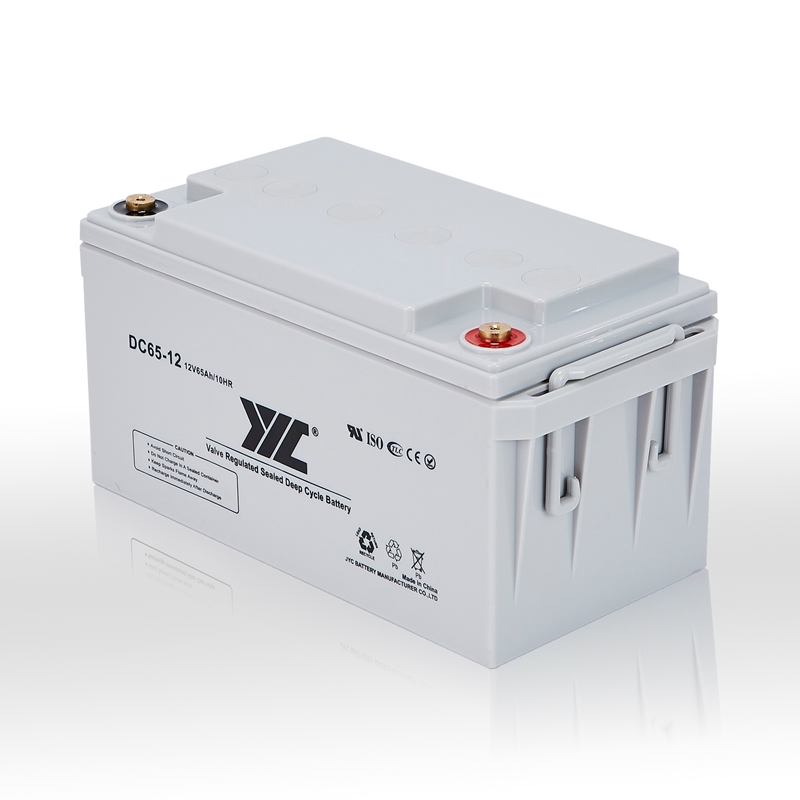

DC65-1212V6534813.70 1686.61 1776.97 1776.97 T3
DC75-1212V7526010.24 1696.65 2138.39 2198.62 T3

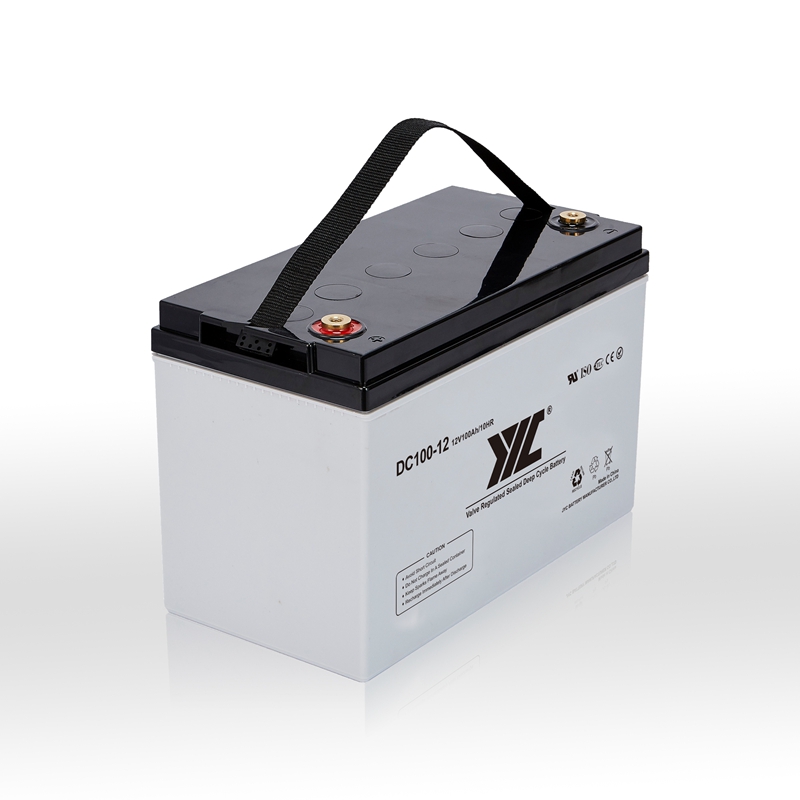

DC100-1212V10033012.99 1726.77 2188.58 2238.78 T4

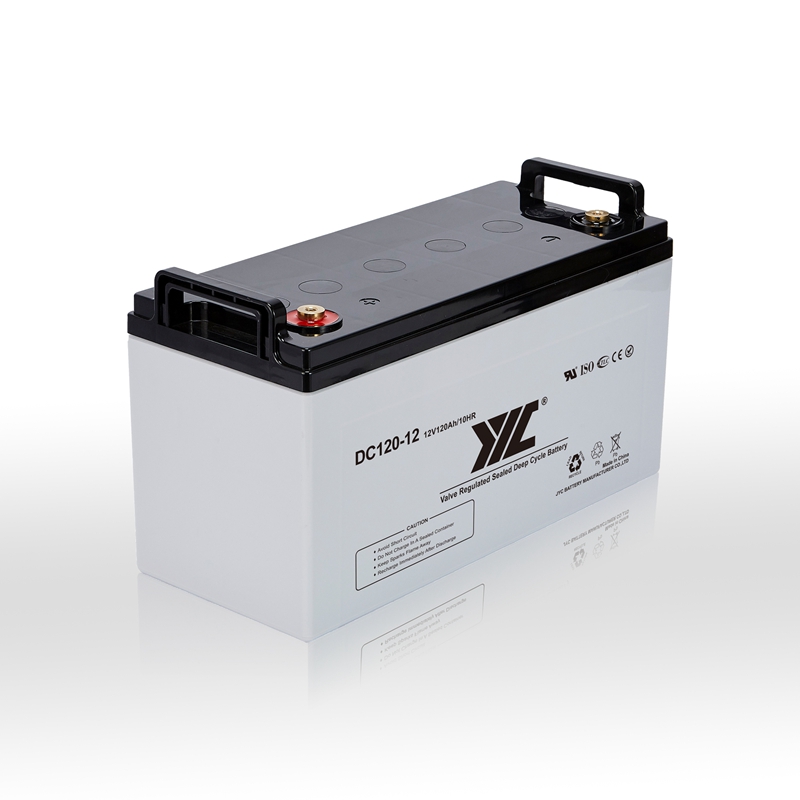

DC120-1212V12040615.98 1736.81 2088.19 2339.17 T4
DC140-1212V14034113.43 1736.81 28111.06 28611.26 T4
DC150-1212V15048118.94 1706.69 2419.49 2459.64 T5
DC200-1212V20052220.55 2409.45 2218.70 2269.90 T5

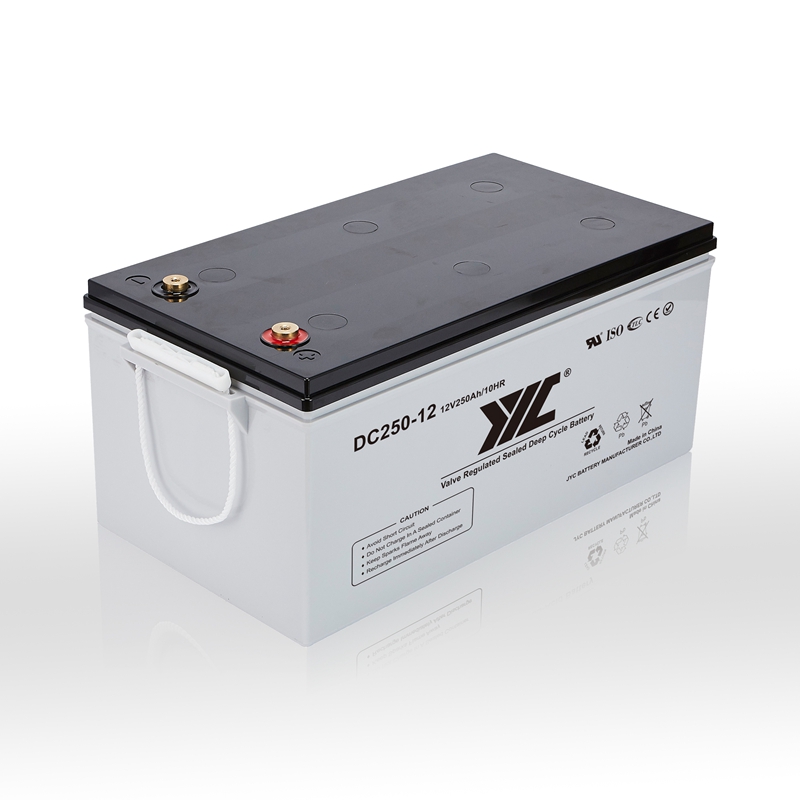

DC250-1212V25052220.55 26810.55 2208.66 2258.86 T5
DC300-66V30029511.61 1787.01 34613.62 36314.29 L15
DC405-6(20HR)6V380 29511.61 1787.01 40515.94 41016.14 T5
  • Heavy Duty Grid

  • Mechanized assembly

  • Non-spillable construction

  • High Reliability and Stability

  • Sealed and Maintenance-free

  • Long Life and low self-discharge design

  • Emergency Power System

  • Communication equipment

  • Telecommunication systems

  • Uninterruptible power supplies

  • Electric toy car and wheelchairs, etc.
