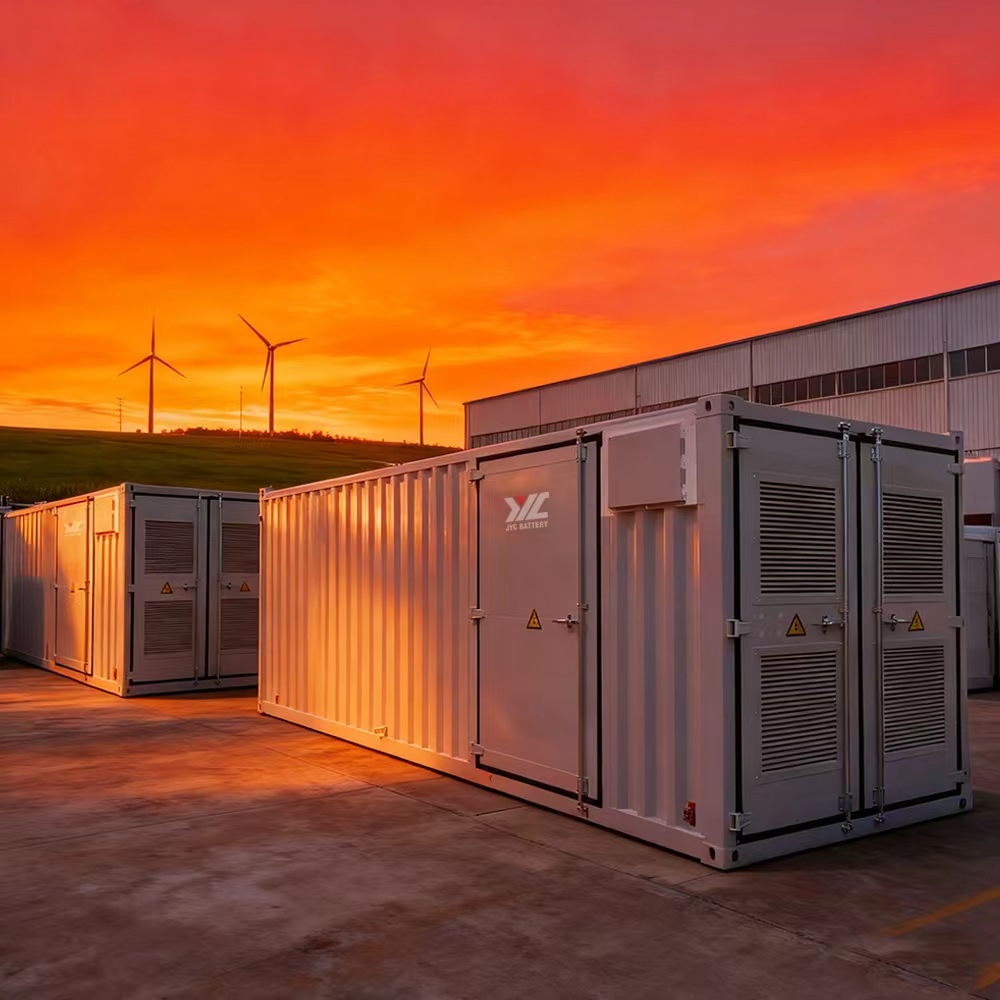

Large Scale ESS

Large-Scale Energy Storage Systems (abbreviated as Large-Scale ESS), also known as grid-scale energy storage systems, are high-capacity, high-power energy storage solutions primarily deployed at the grid level or for large-scale energy projects.

Send Inquiry

<!--[if !mso]>

<![endif]-->


MODEL1.375MW/2.75MWH ESS2.5MW/5.2MWH ESS
Rated Capacity2240Ah3920Ah
Nominal Voltage1228.8V1331.2V
Rated Energy2.752MWh5.218MWh
Rated Charge Current1120A1960A
Rated Discharge Current1120A1960A
System Operating Voltage Range1075.2-1382.4V1164.8-1497.6V
Cooling MethodAir Cooled / Liquid CooledAir Cooled / Liquid Cooled
Charging Temperature Range0C~55°C0C~55°C
Discharge Temperature Range-20°C~60°C-20°C~60°C
Rated Output Power1.375MW2.5MW
Rated Output Voltage380V/400V(50/60Hz)380V/400V(50/60Hz)
Communication ModeCAN/RS485/LANCAN/RS485/LAN
Fire ProtectionHot aerosol fire extinguishing deviceHot aerosol fire extinguishing device
Proof LevelIP55IP55
Dimentions6058*2438*3000mm (20 feet)12198*2900*3000mm (40 feet)
Weight

  • Ultra-Large Capacity and High Power Output

  • Strong Grid Support Capabilities

  • Diversified Technical Routes with Mature Applications

  • Long-Term Stable Operation and High Reliability

  • Support for Large-Scale Renewable Energy Integration

  • Regional Energy Dispatch and Emergency Support

  • Integration of Large-Scale Renewable Energy

  • Grid-Level Peak Shaving and Valley Filling

  • Grid Auxiliary Services

  • Emergency Power Reserve and Disaster Response

  • Support for Cross-Regional Power Transmission

  • Integration with Microgrids for Remote Areas
